HOME / PRODUCTS / Motor / Window Lift Motor / E3AZ 5423395-A E3AZ54233V95-ARM E5TZ1023395-A E5TZ10233V95-ARM E9AZ54233V95-ARM E9AZ5423395A 12V Auto Sliding Window Motor Universal For Ford Ranger Mercury lincoln
  • E3AZ 5423395-A E3AZ54233V95-ARM E5TZ1023395-A E5TZ10233V95-ARM E9AZ54233V95-ARM E9AZ5423395A 12V Auto Sliding Window Motor Universal For Ford Ranger Mercury lincoln
  • E3AZ 5423395-A E3AZ54233V95-ARM E5TZ1023395-A E5TZ10233V95-ARM E9AZ54233V95-ARM E9AZ5423395A 12V Auto Sliding Window Motor Universal For Ford Ranger Mercury lincoln
  • E3AZ 5423395-A E3AZ54233V95-ARM E5TZ1023395-A E5TZ10233V95-ARM E9AZ54233V95-ARM E9AZ5423395A 12V Auto Sliding Window Motor Universal For Ford Ranger Mercury lincoln
  • E3AZ 5423395-A E3AZ54233V95-ARM E5TZ1023395-A E5TZ10233V95-ARM E9AZ54233V95-ARM E9AZ5423395A 12V Auto Sliding Window Motor Universal For Ford Ranger Mercury lincoln
Window Lift Motor

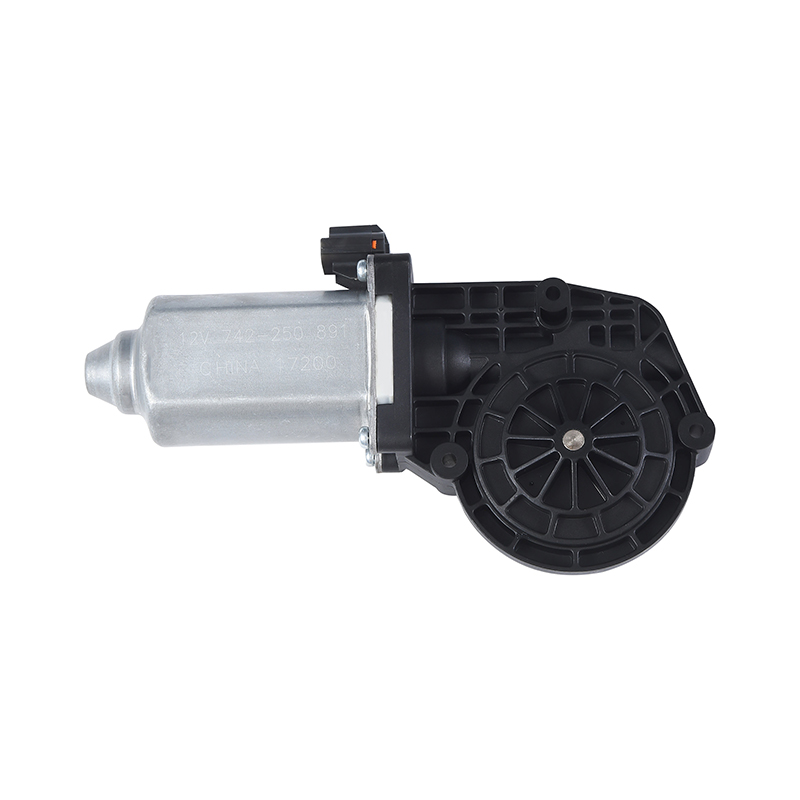

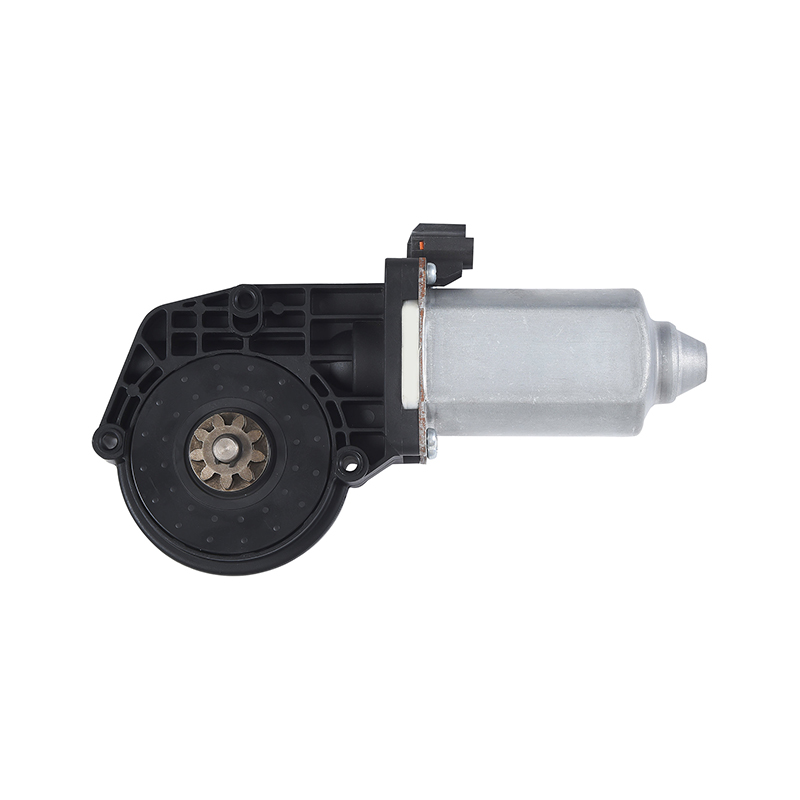

E3AZ 5423395-A E3AZ54233V95-ARM E5TZ1023395-A E5TZ10233V95-ARM E9AZ54233V95-ARM E9AZ5423395A 12V Auto Sliding Window Motor Universal For Ford Ranger Mercury lincoln

 NAX power window lift motor is precision-engineered to match the fit and performance of the original motor in specific vehicle years, makes and models for a reliable replacement.
1. Direct replacement: NAX power window motor is built to match the original lift motor on specific vehicles.
2. simple installation: Easy to install, replace old or damaged part.
3. Quality Assurance: our window lift motor are redesigned for greater durability using finite element analysis, all our products are in-door cycle testing before shipping.
4. Support OEM/ODM: we have more than 20 years design and manufacturing experience, we support OEM, ODM, welcome to inquiry!
5. Warranty: Manufactured from high quality materials, we provide two Years warranty.

Designed for Ford, Mercury and Lincoln, this 12V automatic window motor covers a wide range of models from classic to mid-1990s.  Equipped with high-efficiency motor technology, the 12V automatic window motor has a rated current of 13A and a rated speed of 65±15r/m, allowing the window to be raised and lowered smoothly.

Contact Us
PREV：Electric Motor For Car Window Ford Crown Victoria Mercury Grand Marquis Lincoln Town Car 1W7Z 5423394-AA 1W7Z 5423394-BA 6W1Z 5423201-AA F2VZ-54233V94-BRM NEXT：1C2Z1523201-AA F1TZ78233V94-BRM 12V Auto Front Left Window Lift Motor For Ford E Series

  • Applications

    1989-1997 Ford Thunderbird, Mercury Cougar; 1982-1996 Ford Bronco; 1981-1996 Ford F Series; 1969-1996 Lincoln Mark Series; 1991-1994 Ford Explorer, Mazda Navajo; 1984-1994 Ford Tempo, Mercury Topaz; 1987-1991 Ford Country Squire; 1983-1991 Ford LTD Crown Victoria, Mercury Grand Marquis; 1965-1991 Mercury Colony Park; 89-86 Ford Aerostar; 1981-1989 Lincoln Town Car; 1981-1987 Lincoln Continental; 1981-1986 Ford Ranger; 1967-1986 Mercury Marquis, Ford LTD; 1984-1987 Ford Bronco II; 1978-1983 Ford Fairmont, Mercury Zephyr; 1975-1982 Ford Granada; 1977-1980 Lincoln Versailles; 1975-1980 Mercury Monarch; 1977-1979 Ford LTD II; 1971-1979 Ford Mustang; 1968-1979 Ford Ranchero; 1966-1977 Mercury Comet; 1968-1976 Ford Torino; 1965-1976 Mercury Montego; 1965-1974 Ford Galaxie; 1965-1972 Ford Custom; 1966-1971 Mercury Cyclone; 1971- Mercury Monterey

    OE number

    E3AZ 5423395-A;E3AZ 54233V95-ARM;E5TZ 1023395-A;E5TZ 10233V95-ARM;E9AZ 54233V95-ARM; E9AZ5423395A;E9SZ 6323395-A;F4SZ 63233V95-ARM

    Model Number

    NX-9732

    Position

    Front left（Thunderbird, Cougar, Bronco, Explorer, Navajo, Aerostar, Ranger, Bronco II, Mustang, Ranchero）; Front right（F, Mark）; Front right, rear right（Tempo, Topaz）; Front right, rear left（Country Squire, LTD CV, Colony Park, Grand Marquis）; Rear left（Town, Continental）Front left rear left（Marquis, LTD, Fairmont, Zephyr, Granada, Versailles, Monarch, LTD II, Comet, Torino, Montego, Galaxie, Custom, Cyclone）

    Voltage

    12V

    Locking torque

    9±2 N. M

    Rated current

    13A

    Rated speed

    65±15r/m

    Locked rotor current

    20A

    Anti Pinch Motor

    No

    Purpose

    For replace/repair

    Certificate

    TS16949

    Motor

    Brush motor

    Feature

    Small size, high precision, long service life

    Noise

    Less than 50 decibels

    OEM/ODM

    Supported

    Warranty

    2 years
